110V/220V WDS-650 IR6400 automatic Infrared BGA Welding mobile phone repairing machines for LED Laptop playstation 4

• Laptop and mother boards rework and repair.

• Game consoles applications rework and repair.

• Small and medium size electronics assembly factories.

• Military sophisticated applications rework and repair.

• Medical equipment applications rework and repair.

• Automotive applications rework and repair.

• Light systems and LED applications.

• Home appliance and personal Gadgets applications rework and repair.

• Networking and communication applications rework, repair and assembly.

• Power supply and control PCB applications rework, repair and assembly.

Automatic WDS-650 SMT Pick and Place Machine With Optical Alignment

Parameter

Total Power	Max 6400W
Upper Heating Power	1200W
Lower Heating Power	Second zone: 1200W, Third zone: IR 4000W
Power Supply	(Single Phase)AC 220V±10V 50Hz±3Hz 5.4 KVA
Machine Dimension	L600*W640*H850mm
Positioning Way	Vshape card slot, PCB holder can be adjustable by X and Y axes

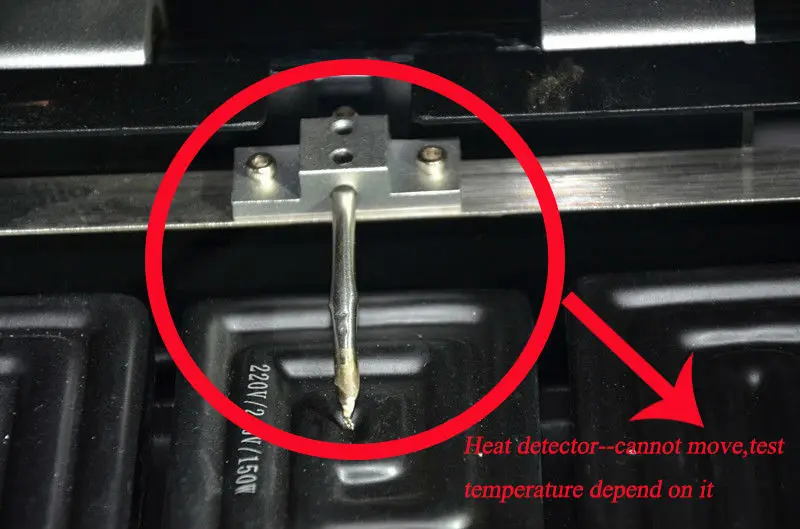

Temperature Controlling	K-type thermocouple closed loop control, independent temperature control
PCB Size(Max)	410*380mm
PCB Size (Min)	10*10mm
PCB Blowup Diploid	2-50X
Weight of machine	60Kg
Thermocouple Ports	3units

Feature

»»Independent 3 heating zones temperature control system

1.The upper and lower hot air heating, IR preheating zone adopts imported infrared gold-plated light tube to heat up quickly,which can heat up at the same time from the top of he component to the bottom of the PCB, to make the PCB board heated averagely,ensure welding effect;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.Infrared gold-plated light tube control heating independently.

2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

4. temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

»»Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

»»Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installationand replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

»»Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of
temperature abuse, the circuit can power off automatically with the double over-temperature
protection.Temperature parameter having password protection to prevent any modification.

Packing:

1,Wooden Package for BGA rework station;

2,Delivery in 2 workdays after payment confirm;

3,Shipping by TNT, UPS ,DHL,FEDEX, EMS or by air or by sea;

4,Loading port: Shenzhen or Hongkong.
